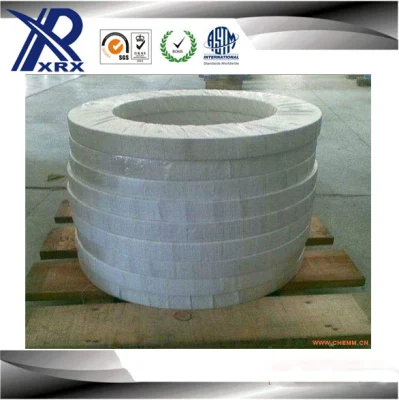

Ultra-Thin 316 Stainless Precision Steel Coil/Strip/Sheetwith Half Hardness

Shop Ultra-Thin 316 Stainless Precision Steel Coil/Strip/Sheet with Half Hardness from our factory. High-quality, durable products available now.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
AISI316
Surface Treatment
Polished
Width
2-600mm
Finish
2b Bright Brushed Polished
Sample
Available for Free
Transportation
by Sea/ Air
MOQ
1 Ton
Thickness
0.02-3.00mm
Thickness Tolerance
0.008mm
Transport Package
Standard Export Package or as Required
Specification
upon yr request
Trademark
XRX steel
Origin
China Mainland, China Taiwan, Japan, Malaysia
HS Code
7220900000
Production Capacity
6000 Ton/Year

Product Description


Product Decription-----------------------------------------------------------------------------
Material: 304
Thickness: 0.01-3.00mm
Width: 100-600mm
Length: according to customer's request
Surface: 2B

Xinrixin Metal Material (Shenzhen) Co.,Ltd produces high precision super thin metal electronic materials, which are primarily used in the 3C industry, including computer hard disk components, printer parts, disk drive parts, TFT-LCD frames, monitor parts, screen frames, mobile handset springs. Furthermore, such foils are widely used in automobile gaskets, engine components, home appliance parts, foil wraps for optical fiber cables, mini laser system parts, medical tubes, etc.Xinrixin can manufacture high quality stainless steel strips as thin as 0.02 - 1.5 mm with widths from 80 - 400 mm. The annual capacity exceeds 10,000 tons.

SUS301 Mechanical properties in the annealed condition
Thickness(mm)  Width(mm) Hardness(hv) Tensile Strength(mpa) Yield Strength(mpa)
0.05-1.5 <500 <200 >700 >205

Chemical composition-----------------------------------------------------------------------------
Main Ingradient Ni    Cr              Mn               C
Reference No. 6.00/8.00 16.00/18.00        ≤2.0       ≤0.15

301 stainless steel common material list
Item SUS301-S SUS301-1/4H SUS301-1/2H SUS301-3/4H SUS301-H
Hardness <200 250-290 310-360 370-420 430-460
Hardness Code S 1/4H 1/2H 3/4H H
Thickness Common thichness:0.1/0.12/0.15......1.5(Irregular thickness can be customized)
Surface 2B,2D,BA,HL,NO.3,NO.4,TR

301 ultar thin, super-hard material list
Item Hardness Hardness Code Thickness
SUS301-EH 470-520 EH 0.08…0.03
SUS301-SEH >521 SEH 0.08…0.03

304 ultar thin, super-hard material list
Item Hardness Hardness Code Thickness
XRX-SUS304-EH >410 EH 0.08…0.03

Ultra-Thin 316 Stainless Precision Steel Coil/Strip/Sheetwith Half Hardness
  Ultra-Thin 316 Stainless Precision Steel Coil/Strip/Sheetwith Half Hardness


Surface Finished-------------------------------------------------------------------------------------------
Surface Finished Characteristics Application
BA Bright heat treatment after cold rolling. Ktchen utenstil, Kitchen ware, Architectural purpose.
2B Finished by heat treatment, pickling after cold rolling, followed by skin pass line to more brighter and smooth surface. General application medical instruments, Tableware.
NO.1 Finished by hot-rolling, annealing and pickling, characterized by white pickled surface. Chemical industry equipment, Industrial tanks.
8K(Mirror) A mirror-like reflective surface by polishing with finer abrasives over 800 mesh. Refletor, Mirror, Interior- Exterior decoration for building.
Hair Line Finished by continuous linear polishing. Architecture industries, Escalators, Kitchen ware, Vehicles

Packing&Shipping-----------------------------------------------------------------------------------

Ultra-Thin 316 Stainless Precision Steel Coil/Strip/Sheetwith Half Hardness
Ultra-Thin 316 Stainless Precision Steel Coil/Strip/Sheetwith Half Hardness Ultra-Thin 316 Stainless Precision Steel Coil/Strip/Sheetwith Half Hardness
Please feel free to contact us if you are interested in our stainless steel solutions. Thank you!
