Product Description

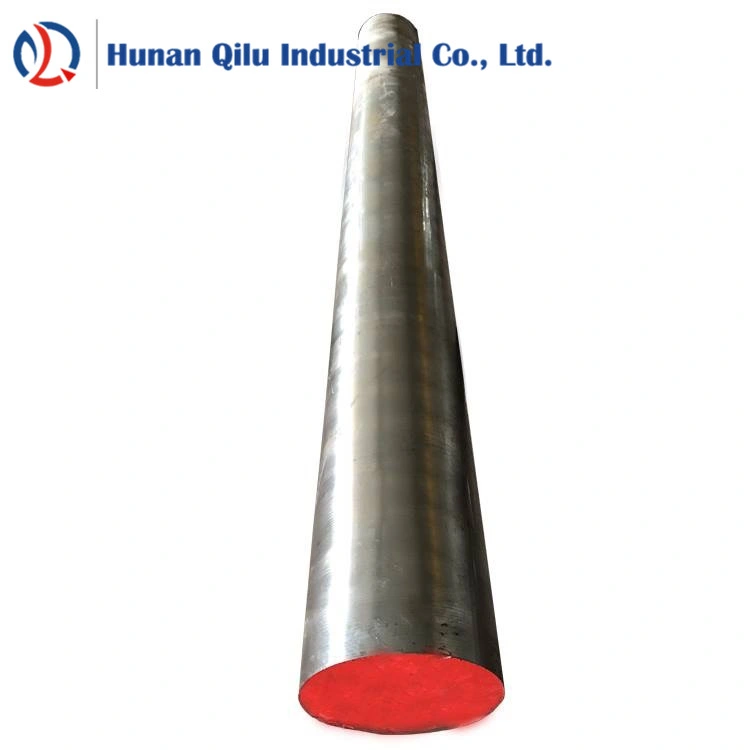

Hot Forged Special Steel Large-Sized Round Bar 4340 SNCM439/SNCM8 36CrNiMo4/1.6511
1: 4340 steel introduction
AISI 4340 steel is a medium carbon, low alloy steel known for its toughness and strength in relatively large sections. AISI 4340 is also one kind of nickel chromium molybdenum steels. 4340 alloy steel is generally supplied hardened and tempered in the tensile range of 930 - 1080 Mpa. Pre hardened and tempered 4340 steels can be further surface hardened by flame or induction hardening and by nitriding. The 4340 steel has good shock and impact resistance as well as wear and abrasion resistance in the hardened condition. AISI 4340 steel properties offer good ductility in the annealed condition, allowing it to be bent or formed. Fusion and resistance welding is also possible with our 4340 alloy steel. ASTM 4340 material is often utilized where other alloy steels do not have the hardenability to give the strength required. For highly stressed parts it is excellent choice. AISI 4340 alloy steel can also be machined by all customary methods.
2: 4340 Steel equivalent
| Country | Japan | Germany | Britain | USA |
| Standard | JIS G4103 | EN10250 | BS970 | ASTM A29 |
| Grade | SNCM439 | 36CrNiMo4/1.6511 | EN24/817M40 | 4340 |
3: 4340 steel chemical composition
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| 4340 | 0.38-0.43 | 0.15-0.35 | 0.6-0.8 | 0.035 | 0.04 | 0.7-09 | 0.2-0.3 | 1.65-2.0 |
| 36CrNiMo4 | 0.32-0.4 | 0.4 | 0.5-0.8 | 0.035 | 0.035 | 0.9-1.2 | 0.15-0.3 | |
| EN24 | 0.36-0.44 | 0.1-0.4 | 0.45-0.7 | 0.035 | 0.04 | 1.0-1.4 | 0.2-0.35 | 1.3-1.7 |
| SNCM439 | 0.36-0.43 | 0.15-0.35 | 0.6-0.9 | 0.03 | 0.03 | 0.6-1.0 | 0.15-0.3 | 1.6-2.0 |
4: 4340 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: 4340 steel overviews
| Size | Round | Dia 6-1200mm |
| Plate/Flat/Block | Thickness 6mm-500mm | |
| Width 20mm-1000mm | ||
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Delivery time | 30-45 days | |
| Application | 4340 alloy steels are used for aircraft landing gear, automotive, oil and gas drilling, warm and cold forming, machine building, transfer systems like power transmission gears and shafts, general engineering industries and structural use applicatios such as heavy duty shafts, gears, axles, spindles, couplings, pins, chucks, molds and so on. | |
6: Delivery condition
For hot forged rolled bar, usually the delivery condition is hot forged or rolled, annealed/QT, rough turned/Black surface.
For hot forged or hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed/QT, milled surface/Black surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
Hunan Qilu Industrial Co., Ltd has the capacity to forge round steel, steel flat, square steel, module, shaft and roller, etc. The main specifications of the products include Φ80-1000mm forging materials and 80-1200mm square billets and which the maximum piece weight can reach 50T.
Hunan Qilu Industrial Co., Ltd were already engaged in exporting steel for 11 years, could supply a great variety of hot forged, hot rolled and cold drawn Steels, including engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel etc., besides Qilu Industrial also has their own heating treatment shop and machining shop to provide heating and cutting service.
Since 2008 year, Hunan Qilu Industrial has the right to export all FORGED STEEL behalf of Qilu Speical Steel Co.,ltd which is specialized in smelting and forging of special steel since 1965 year, now Qilu special steel is one of the biggest manufacturer of forged product in China.The forged products are used in Automotive, Aerospace, Power Generation, Oil & Gas, Transportation and Industrial. We already set up the warehouse in Wuxi and Dongguan city, more than 20000 tons ex-stock could be supplied with kinds of size.
Qilu Industrial is the professional one-stop steel manufacturer, stockist and exporter in China, our customers spread all over the world, include West Europe, North America, South America, Asia, Middle Asia, Africa, Australia, etc.
The company owns advanced special steel smelting facilities and forging processing equipments, the main steel-making equipment include 2 sets of 50t ultra-high power electric arc furnaces,2 sets of 60t LF refining furnaces,1 set of 60t vacuum degassing refining furnace and 4 sets of 1-20t electroslag re-melting furnaces.
The main forging equipments mainly include:3 sets of 5t electro-hydraulic hammers, 1 set of high-speed forging units of 800t,1600t,2000t and 4500t respectively.
