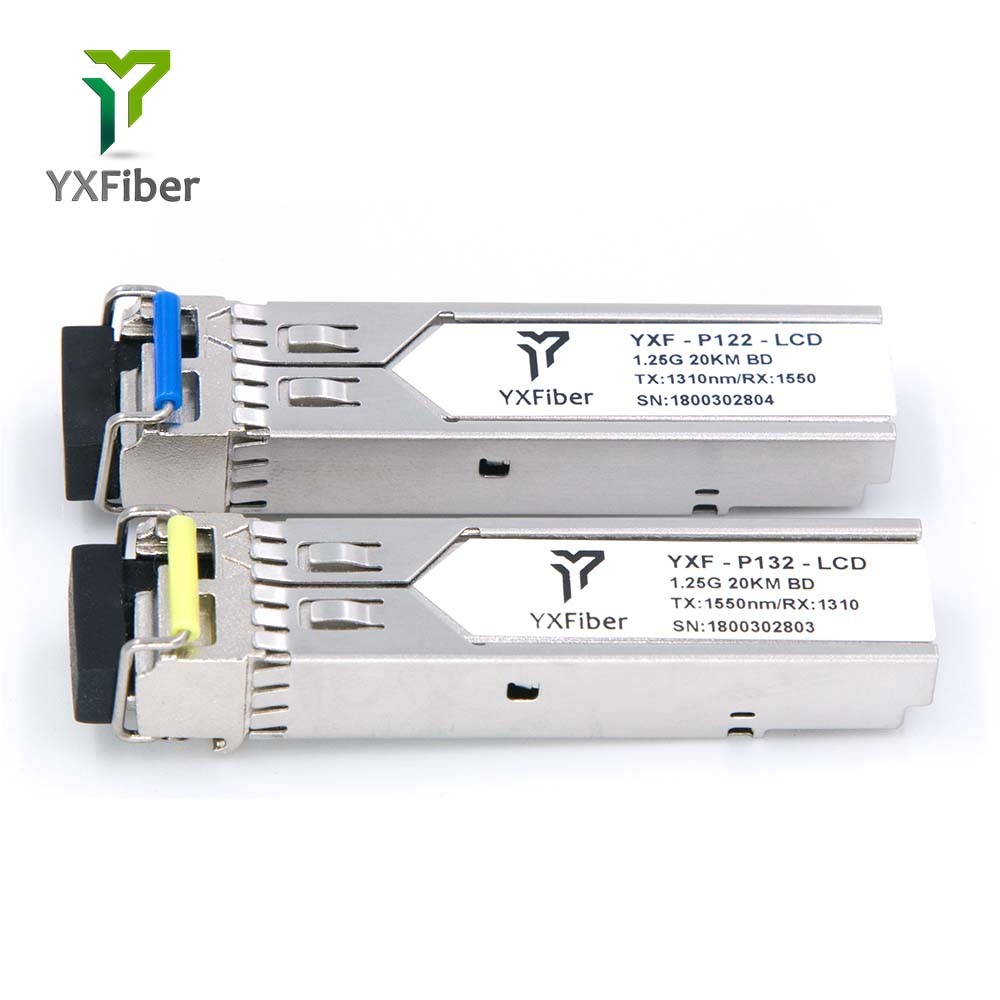

1000bx 20km Wdm SFP 1.25g SMF LC Ddm Dom Module Optical

Get high-quality 1000bx 20km Wdm SFP 1.25g SMF LC Ddm Dom Module Optical at our factory. We offer durable and reliable optical modules for all your needs.
Request a Quote

PRODUCTS DETAILS

Product Description

SFP 1.25G 20km 1310nm/1550nm SFP Module Duplex LC DDM

Features :

1.Supports 1.25Gbps/1.0625Gbps bit rates
2.Bi-Directional LC connector
3.Hot-pluggable SFP footprint
4.1310nm FP laser and1550nm PIN photo detector
5.1550nm DFB laser and 1310nm PIN photo detector
6.Applicable for 20Km SMF connection
7.Low power consumption, < 0.8W
8.Digital Diagnostic Monitor Interface
9.Compliant with SFP MSA and SFF-8472
10.Very low EMI and excellent ESD protection
11.Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Applications:

1.Gigabit Ethernet
2.Fiber Channel
3.Switch to Switch interface
4.Switched backplane applications
5.Router/Server interface
6.Other Optical Links


Product Description:

SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


Functional Diagram:

1000bx 20km Wdm SFP 1.25g SMF LC Ddm Dom Module Optical



Products Details

1000bx 20km Wdm SFP 1.25g SMF LC Ddm Dom Module Optical


Packing and Shipping

1000bx 20km Wdm SFP 1.25g SMF LC Ddm Dom Module Optical
1000bx 20km Wdm SFP 1.25g SMF LC Ddm Dom Module Optical

We support DHL/FedEx/UPS and other delivery methods

Q&A
Q: What kinds of custom choices are offered in YXFiber?

A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.

Q: Why should I trust YXFiber compatible transceivers?

A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.

Q: Can we use APC connectors on this?

A: Hi, as the default type is UPC, so it's only can be connected with UPC connectors. Thanks

Q: Once I place an order for my transceivers, how long will it take to receive them?

A: Normally you can receive the goods within 7 workdays

Q: Will using compatible optics in my equipment negatively affect my manufacturer's warranty?

A: No. Network equipment manufacturers do not require that you use only name-brand optics. In fact, when a product fault or defect occurs in the network, and the fault or defect is not attributable to the use of third-party optics, they will continue to provide support for the affected product under warranty or covered by their support program.
